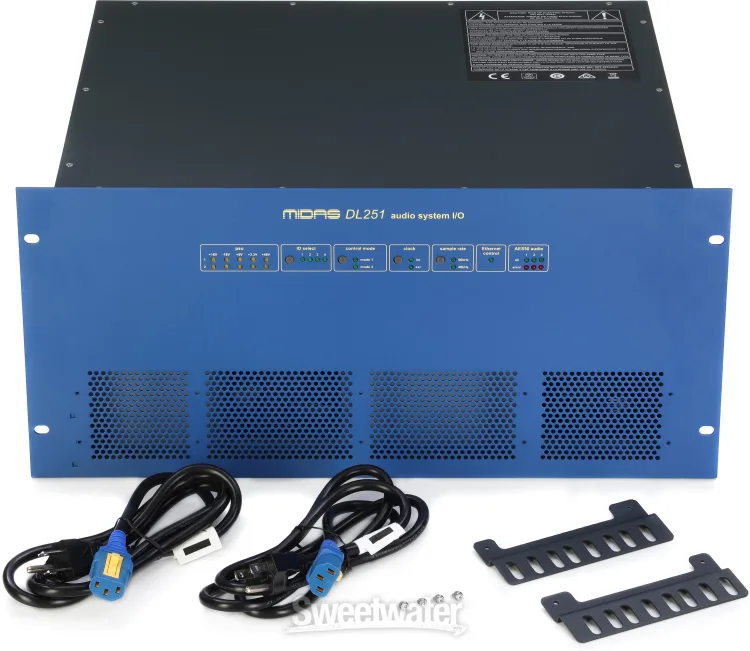

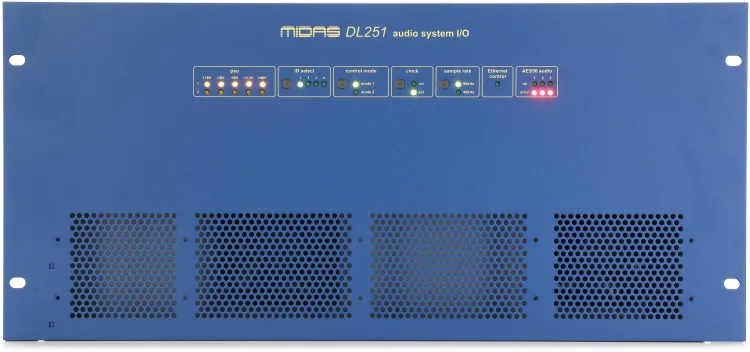

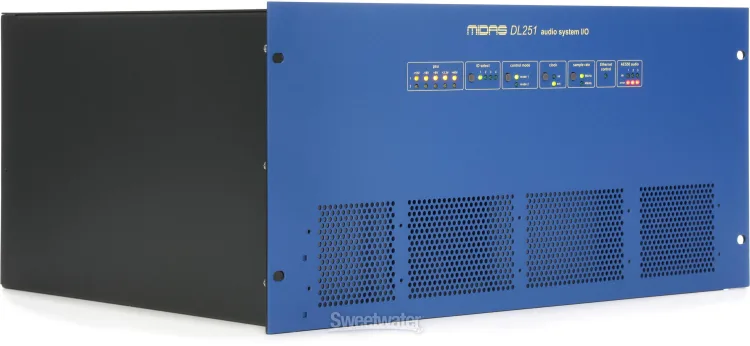

Midas DL251 PRO SERIES 48-input / 16-output Stage Box

The Midas DL251 is a 5U fixed-configuration I/O unit with 48 mic/line inputs and 16 mic/line outputs. Limited to analogue connections, the DL251 gives you a cost-effective solution if you don’t need the flexibility of Midas modular I/O hardware. You get MIDI in, out and thru – plus one Ethernet control – standard. Three AES50 ports handle the (n+1) redundant digital audio interface. The DL251 can be switched between 96kHz and 48kHz from the front panel. A rear-panel “mute all outputs” button makes for easy on stage re-patching. The unit is also equipped with dual redundant PSUs. Midas DL251 I/O Unit Features at a Glance:

• 48 remote control mic/line audio inputs
• 16 audio line outputs fixed configuration
• Switchable between 96kHz and 48kHz sample rates
• Midi out and thru
• Three AES50 ports
• Ethernet control port (using Midas protocols)
• Dual redundant PSUs
• Digital snake and distribution network component
• 5U chassis height

Expand your Midas System with the Midas DL251 I/O unit!
